Description

Product Description

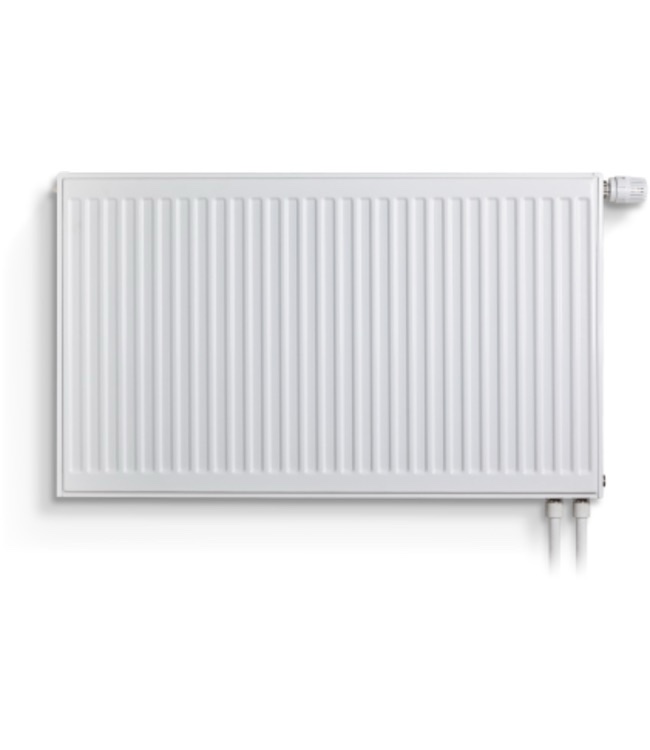

The Kalde Steel Panel radiators offered by us are designed with advanced manufacturing technology and meet BS, DIN EN 442 standards. They are manufactured from high quality steel and offer exceptional thermal efficiency.♨️

The radiator is available in 5 standard heights (300 mm, 400 mm, 500 mm, 600 mm, and 900 mm) and in 9 different lengths (from 500 mm to 2000 mm). This varied range allows for perfect adaptation to all rooms and heating requirements.🧩

The manufacturing process includes German precision presses and molds, as well as a complete purification and electrostatic painting treatment to ensure a durable and aesthetic finish.♻️

Technical characteristics.

•Type: 22 (double plate, double convector)

•Thickness of steel plate:

-Panel: 1.11 ± 0.09 mm

-Convection: 0.30 ± 0.09 mm

-Grid and side panels: 0.50 ± 0.09 mm

•Maximum operating temperature: 120°C

•Maximum operating pressure: 10 bars

•Test pressure: 13 bars

Robust and tested design: Each radiator is tested under 13 bars of pressure to ensure maximum safety and durability.

Installation and connection

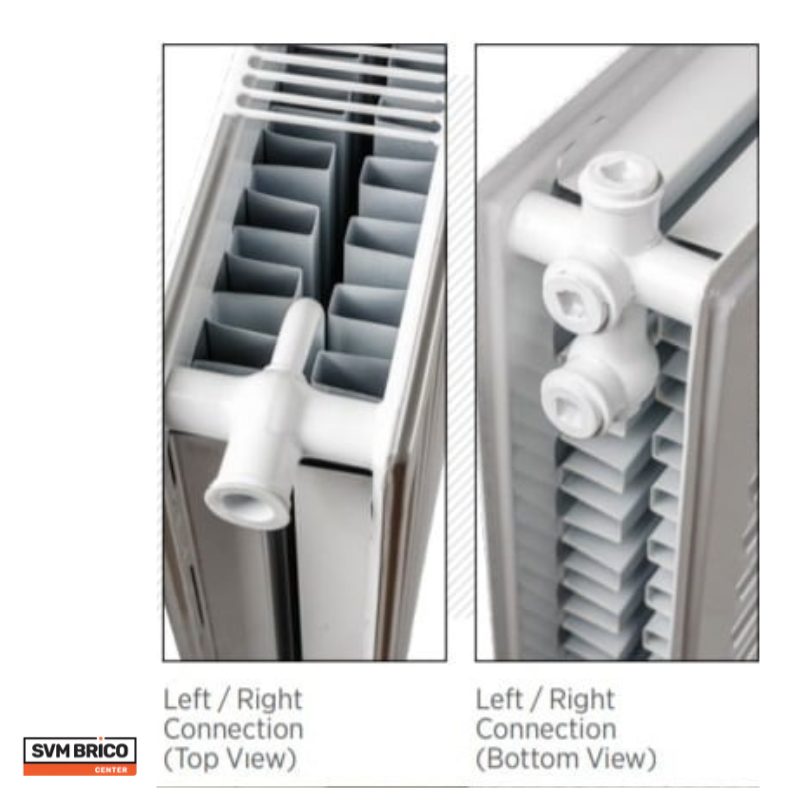

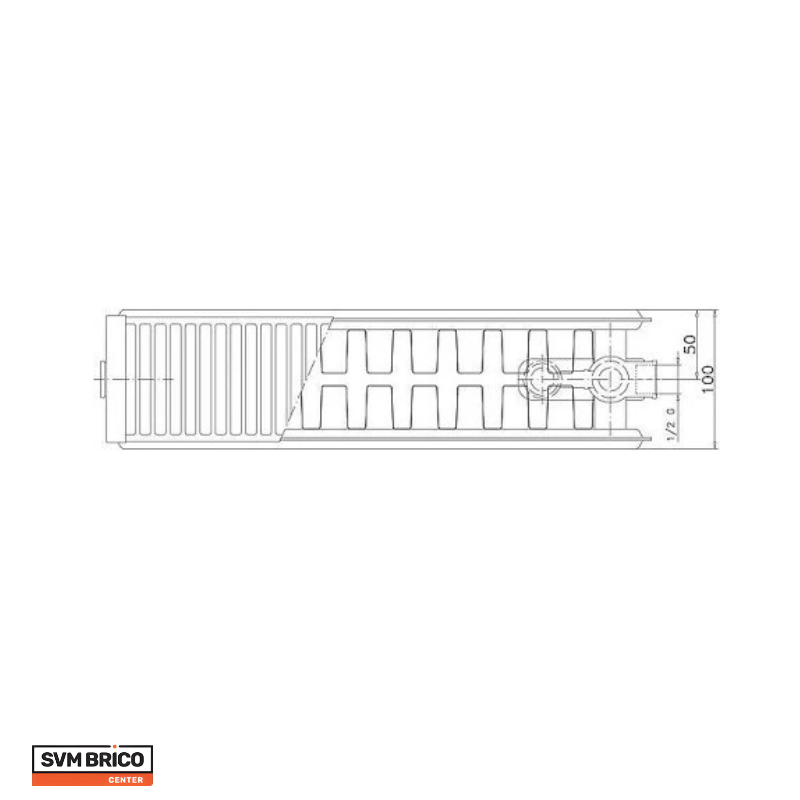

The radiator is equipped with side and bottom connections allowing for mounting flexibility. It can be connected via a T-connection system offering various installation options.

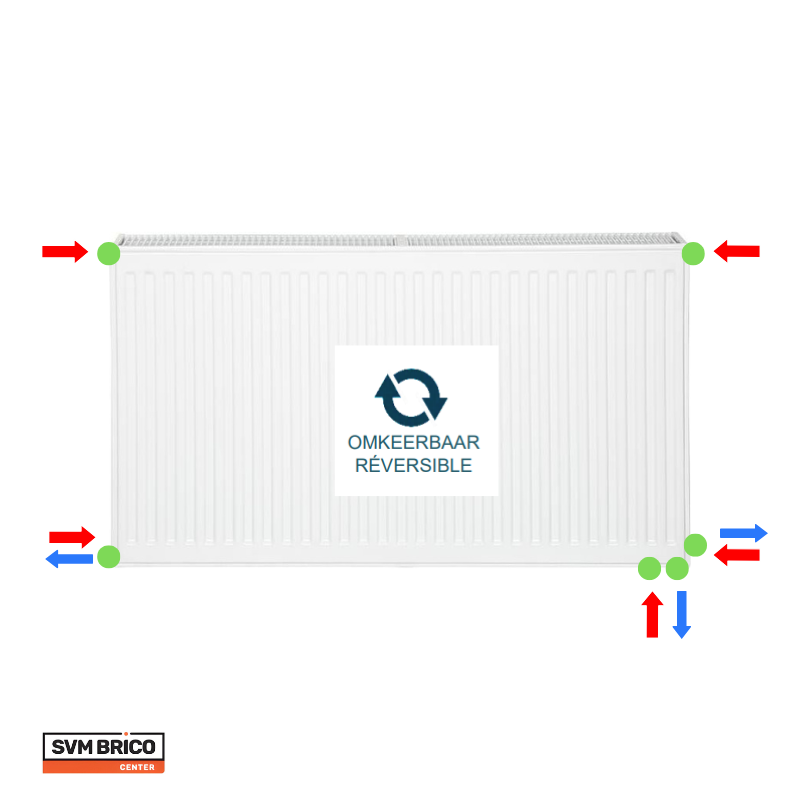

Thanks to the J-brackets provided, the installation can be reversible, allowing the connection orientation to be easily adapted as required.

Accessories and delivery

The radiator is supplied with:

✔️Pre-assembled side and top grilles

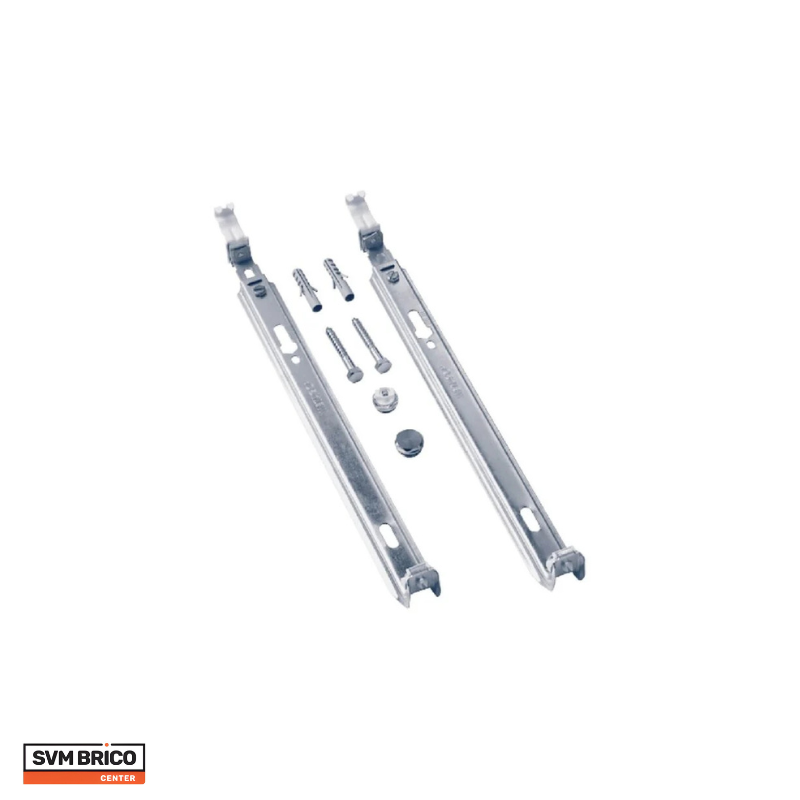

✔️Wall mounting brackets

✔️Fixing kit (threaded wooden bolts + dowels)

✔️1/2 inch rotating vent plug

✔️1/2 inch blind plug

Recommended connection kit

We recommend that you order a connection kit to ensure a quick and efficient installation.

This kit includes:

☑️Adaptors for central heating pipes (15 mm) and flexible pipes (16 mm)

☑️Thermostatic valve

☑️All necessary accessories for hanging and connection

Why choose Kalde radiators?

✅High quality manufacturing according to European standards

✅Optimal thermal efficiency thanks to premium steel

✅Installation flexibility with multiple connection options

✅Durability and careful finishing with electrostatic painting

✅Suitable for various spaces: homes, offices, commercial spaces
